Gasoline-Powered Hydro-Test Pumps and Test Pumps for Water Mains or Large Systems
Our GHT Series Testers are powered by dependable Honda gas engines. These Hydro-Test units are ideal for all applications where electric power is not readily available. Maximum pressures up to 3,000 PSI can be generated by these totally adjustable test pumps by the operator in the field for any specific job.
The GHT series Hydro-Test pumps are designed to draft water from a drum, gravity feed from a tank or operate with standard water pressure. All units come pre-set, fully tested and ready to operate.
For water mains, underground sprinkler lines, and other large systems, the GHT5350H and GHT10-5H units (shown below) have very high output (600 gph) to handle even the largest system in a quick fashion. These are the finest high gallonage test pumps on the market today. Maximum test pressures (up to 400 PSI) can be easily set by the operator in the field. Using dependable Honda gasoline power, these units are totally portable and can be used wherever a source of water can be obtained. These units are also available with electric or air power upon request.
Read below for details about each to find the best one for your needs.
Please note GHT series units are no longer available with Briggs & Stratton engines, however, parts are still available for your unit. The original GHT 3550H and GHT 31000H have been redesigned. See the GHT500H and GHT1000H below.
Contact us for any product questions or to order!

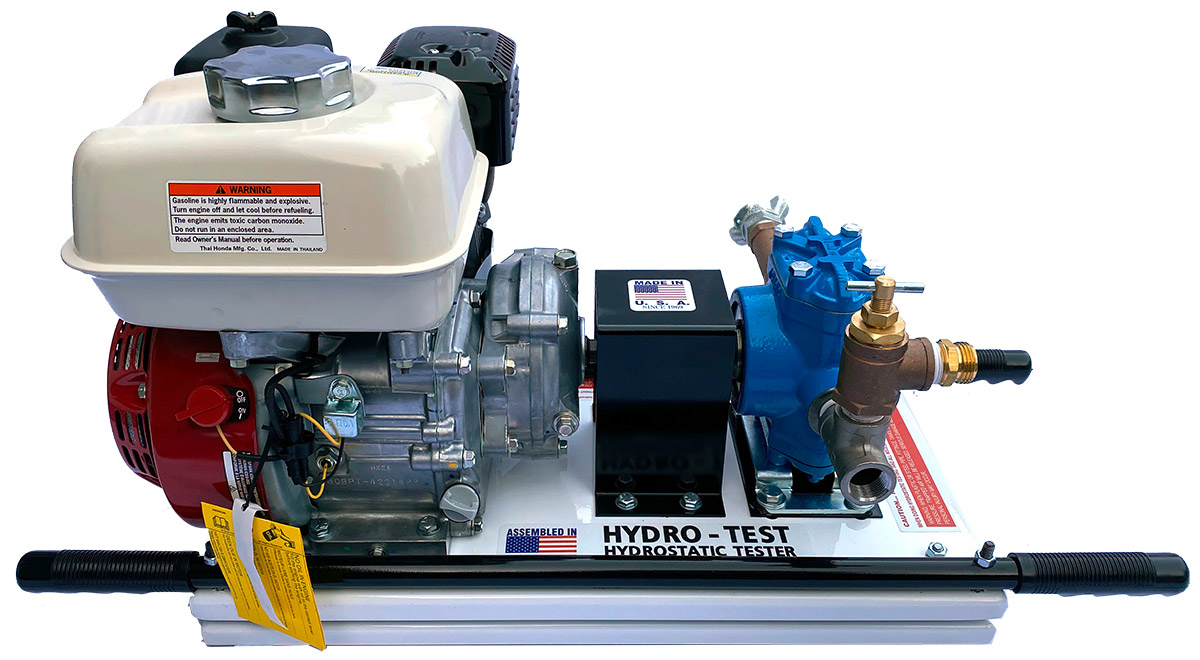

The GHT10-5H hydrostatic test unit is intended to be a replacement power unit for the contractor who has a test tree, hoses, and gages. These test pumps work well for water mains, underground sprinkler lines, and other large systems. This unit is shipped with an adjustable relief valve plumbed in.
| MODEL GHT10-5H | 5.5 HP (Honda) | 10 GPM | 400 PSI MAX |

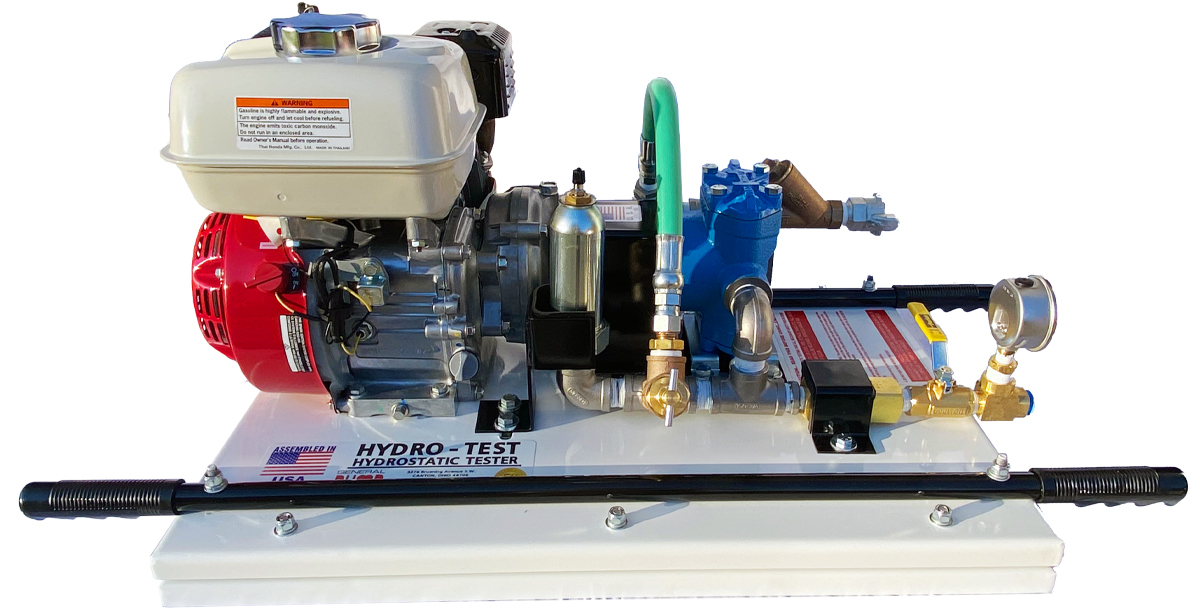

The GHT5350H hydrostatic test unit comes complete with all necessary piping, pulsation dampener, backflow prevention check valve, gage, adjustable relief valve, and 10' outlet hose. These test pumps work great for for water mains, underground sprinkler lines, and other large systems.
| MODEL GHT5350H | 5.5 HP (Honda) | 10 GPM | 400 PSI MAX |
These units are furnished complete with adjustable relief valve, gage, 10' outlet hose, and 6' siphon hose and are supplied with a portable flat free tire cart.
These models replace our previous GHT3550H and GHT31000H.
| MODEL GHT500H | 4.8 HP (Honda) | 3 GPM | 500 PSI MAX |
| MODEL GHT1000H | 4.8 HP (Honda) | 2 GPM | 1000 PSI MAX |
These units are supplied with a portable pneumatic tire cart and a 15' outlet hose and provide pressure up to 3000 PSI max.
Photo is coming soon. The unit looks similar to our HT1.5 Electric unit.
GHT52000H and GHT53000H UNITS ARE SPECIAL ORDER ONLY AND ONCE ORDERED CANNOT BE CANCELLED.
| MODEL GHT52000H | 5.5 HP (Honda) | 3 GPM | 2000 PSI MAX |
| MODEL GHT53000H | 5.5 HP (Honda) | 2 GPM | 3000 PSI MAX |
| Filename |
|---|
 GHT3550H_and_GHT31000H_Parts_List |
|
GHT5350H_and_GHT10-5H_Parts_List |
|
HT10_Pump_Breakdown |
| Filename |
|---|
|
GHT10-5H_Instructions |
|
GHT500H_Instructions |
|
GHT1000H_Instructions |
|
GHT3550H_Instructions |
|
GHT5350H_Instructions |
|
GHT31000H_Instructions |
